The white TTGO-Camera Grove connector?

Q&A Forum › The white TTGO-Camera Grove connector?
0 Vote Up Vote Down
f.mentiplay asked 5 years ago
3 Answers
0 Vote Up Vote Down
f.mentiplay answered 5 years ago

I recently bought the ESP32-CAM ebook. I have a white TTGO-Camera board. The book describes that the TTGO- camera board has a Grove connector. This is not correct. The grove connector is smaller, only has 4 pins and the pins are thinner.
So does anyone know what type of connector is on the white TTGO-Camera board?
Any help much appreciated.
Thanks

0 Vote Up Vote Down
Sara Santos Staff answered 5 years ago

Hi.
You’re right. We need to fix that in the eBook.
I think you can call that a “JST connector with 5 pins”, but I don’t know the exact dimensions.
Regards,
Sara

0 Vote Up Vote Down
Paul Wheeler answered 5 years ago

A couple of us searched and this is what we found for my TTGO T-Camera. It is made by: LilyGo, who makes the camera. I assume yours is going to be the same

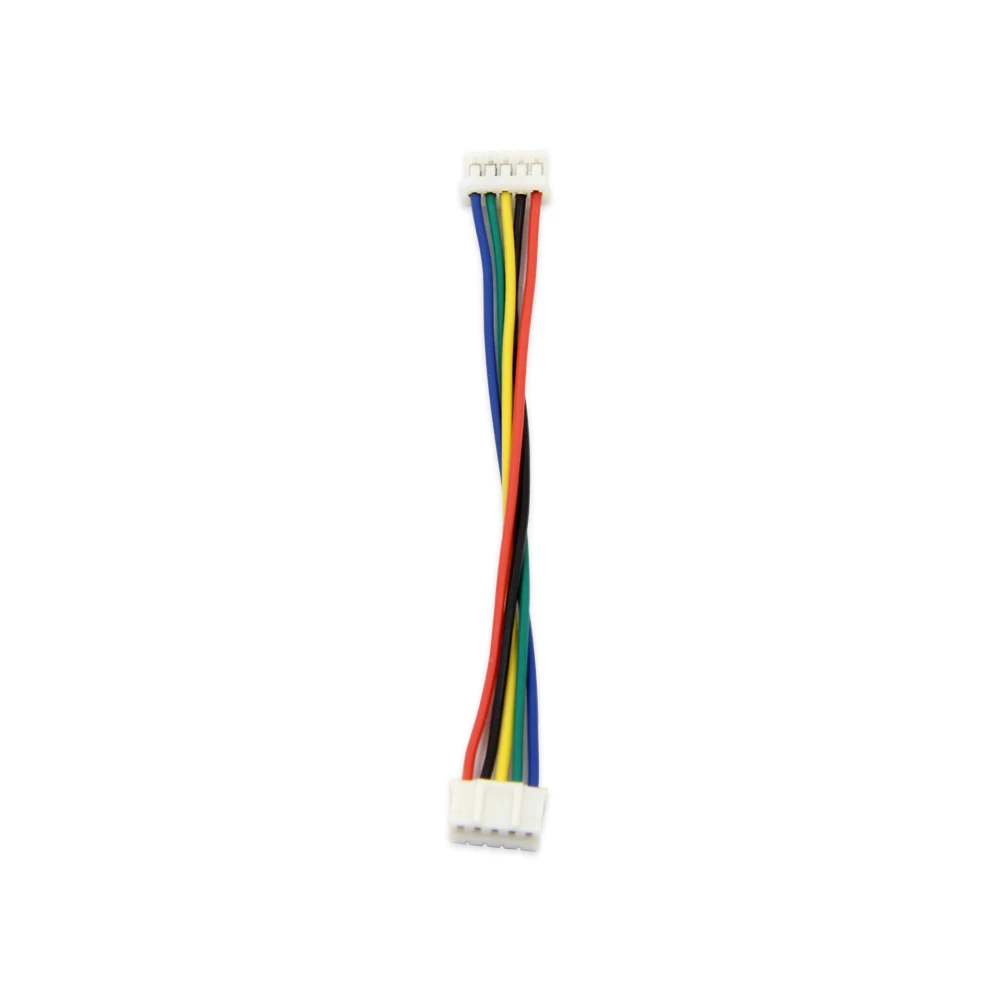

TTGO T-Camera ESP32 WROVER & PSRAM Camera Module Data Cable
Product Description: This cable is specially equipped with TTGO T-Camera ESP32 WROVER & PSRAM Camera Module ESP32-WROVER-B OV2640 Camera Module 0.96 OLED.

line
Type: 5V GND 3V3 IO22 IO21
I have not gotten mine yet, but we think this is it. There is a $2 New user coupon, so I plan to order 10 just because I can, and in case I want to make other projects.
10 cents each with  Shipping: US $5.58 to United States via AliExpress Standard Shipping Estimated Delivery on Nov 16
https://www.aliexpress.com/item/33014488345.html?spm=2114.12057483.0.0.598f6ea8i027E0
Hope this helps.
Paul Wheeler @ cox.net
